>> HB-8218 Auto Packing Batching Weighing Controller ..................................................

¡@

The HB-8218 dynamic weighing controller is designed for high speed packing scale and batching seighin control systems. Its especially for hi-speed dynamic weighing control system, Such as high speed packing scale, filling machine, container bag packing, which the performance not only accurate but highj speed.



This product measures and controls various kinds of functions needed to design for the automatic batching specially, rigid, simple and compact size design is especially suitable for the various packer, single or multiple batching control system application, It is very easy to controls independently or links use with PLC or control with the computer systems, ItsBatching Controller is designed for auto batching weighing control systems. Its control panel includes the keypad, annunciator LED, instant weight data display and all of the setting data.



No doubt, Holbright has over 30 years experiences for design in industrial field to guarantee HB-8218 perfect performance.





Standard Features:

  • A/D conversion rate up to 200 times per second, is totally suitable for the high-speed dynamic weighing control system, especially for high speed packing scale or batching system.
  • Can totally display all instant weight data and intact setting data at the same time, such as, main cut-off, dribble cut-off, free fall compensation, final weight, material code...etc.
  • Compact size, rigid construction,- the design of the industrial classification standard.(96mmL X 96mmW )
  • This instrument offers the completely auto batching control system functions.
  • Can be preset and memory up to 16 different materials code.
  • 8 digits totalizer display
  • 7 digits counter display
  • All of material data format can preset, key in and memorized from in the front of panel keypad.
  • All memorized and preset data can be protected in case of power failure.
  • It can offer 13 o/p signal for zero band, main cut-off, dribble cut-off, final weight, free fall compensation, sp1, sp2, sp3, complete, discharge, upper limit, lower limit, error message, control.
  • It can offer 131/P signal for start, emergency stop, ZERO reset, ID code---etc.
  • It can compare to preset data by near zero / lower limits / upper limit / preset tare / inhibit of time / judging of time / complete signal of time / discharge of time.

Technical Specification:



HB-8218

Input and A/D Conversion

Input Sensitivity

0.3 £gV/D

Conversion rate

200 times/sec

Adjusting range of zero

0.1mV to 30mV

Excitation voltage

12VDC. 300mA. Can drive 8 (350) Load Cells

Input Impedance

10M (Min)

A/D Conversion Method

A/D Resolution

24 bits (16,000,000) internal counts

Coefficient of  Temperature

zero point 0.2£gV/¢J RTI. Span.: 15ppm/¢J

Digital Section

6 digits, LED, character high 0.52¡¨ (13.2mmH)

Preset Weight

(a). The main cut-off (PRE 1 ): 3 digits

(b). The dribble cut-off (PRE 1 ): 3 digits

(c). final weight (FULL): 6 digits

(d). free fall compensation (FREE FALL): 4 digits

(e). Material number (CODE): 1 digit

Display range: 300~30000

Under zero indication: Negative sign " ¡Ð" sign

Over load indication:Input signal ¡Ö30mv "----"

Interface

(a). A RS-232 communication interface.

(b). I/O interface: D/I: 13 points, D/O: 13 points

Annunciators LED

Center of Zero, Tare, Gross Weight, Net Weight, Stable, SP1, SP2, SP3

Input Keys

6 Input Keys, which includes Zero, Tare, Tare Reset, Gross/Net Weight, Function, error ack.

5 Input parameters setting keys include: ¡¶ UP, ¡¿ DOWN, SEL., SEC. ENTER keys.

The parameter setting includes being following:

Motion detector, zero  tracking, decimal point, minimum graduation, max. capacity, digit filter, zero range, A/D conversion rate, the measurement unit, count by, material number is chosen, the main cut-off, the dribble cut-off, final weight and the free fall compensation.

General Specifications

Rear panel

Load Cell inputs, RS-232X1, I/O interfaces, AC power input, power switch

Weight

2.5kg

Power supply

110~220VAC¡Ó10%, 50~60HZ (present in factory)

Operating Temperature

10C ~ 40C (14F ~ 104F)

Operating Humidity

Relative Humidity  85% (Non-condensing)

Physical size

96 (W) x 96(H) x 170(D)  mm

Option

OP-01-8218 Printer Function

OP-02-8218 RS485 Serial interface

OP-03-8218 (HB-EXT-BD) DI/DO

Relay output board with 37P Terminal block connector with cable

OP-04-8218(HB-TRANS 9): 9P Terminal block connector with cable

OP-05-8218(HB-TRANS 25): 25P Terminal block connector with cable

OP-06-8218(HB-TRANS 37): 37P Terminal block connector with cable

HB-8218 Control Input/output connector

Female 37-Positions D-Type Connector:

PIN

I/O

FUNCTION

PIN

I/O

FUNCTION

1

OUT

DO01

DOF1 (SP1): Hi-Speed(Hi)

20

OUT

DO01

DOF2(SP2): M-Speed(Lo)

2

OUT

DO03

DOF3 (SP3): L-Speed

21

OUT

DO03

DOF4:WEIGHING COMPLETE

3

OUT

DO05

DOF5:OVER(HiHi)

22

OUT

DO05

DOF6:OK(GO)

4

OUT

DO07

DOF7:UNDER(LoLo)

23

OUT

DO07

DOF8:ERROR

5

OUT

DO09

DOFE:UPPER LIMIT

24

OUT

DO09

DOFF:LOWER LIMIT

6

OUT

DO11

DOFG: SUPPLY BIN GATE OPEN

25

OUT

DO11

DOFH:NEAR ZERO

7

OUT

DO13

DOF0:No Function

26

OUT

DO13

DIF1: ZERO

8

OUT

DO02

DIF2:TARE

27

OUT

DO02

DIF3: BATCH START

9

OUT

DO04

DIF5:EMERGENCY STOP

28

OUT

DO04

DIF6: ACC/NO ACC

10

OUT

DO06

DIF7: ERROR ACK

29

OUT

DO06

DIFE: FEED/DISCHARGE MODE

11

OUT

DO08

DIFI: CODE BIT.0

3O

OUT

DO08

DIFJ: CODE BIT.1

12

OUT

DO10

DIFL: CODE BIT.2

31

OUT

DO10

DIFN: CODE BIT 3

13

OUT

DO12

DIFO:CODE ENTER

32

OUT

DO12

DIFO: No Functionn

14



COM: Input/Output Common

33



COM: Input/Output Common

15



+ 5Vdc

34



COM or 0Vdc:

16



+5Vdc

35



COM or 0Vdc

17



Tx+:RS-485

36



RX+: RS-485

18



Tx -:RS-485

37



RX -: RX-485

19



SG:RS-485

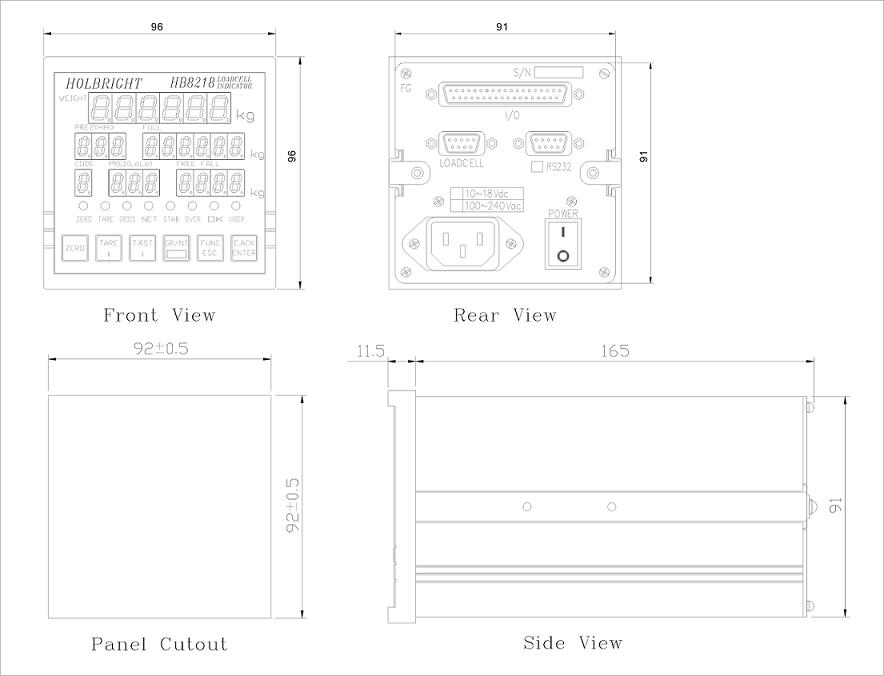

>> Physical Dimensions Outline

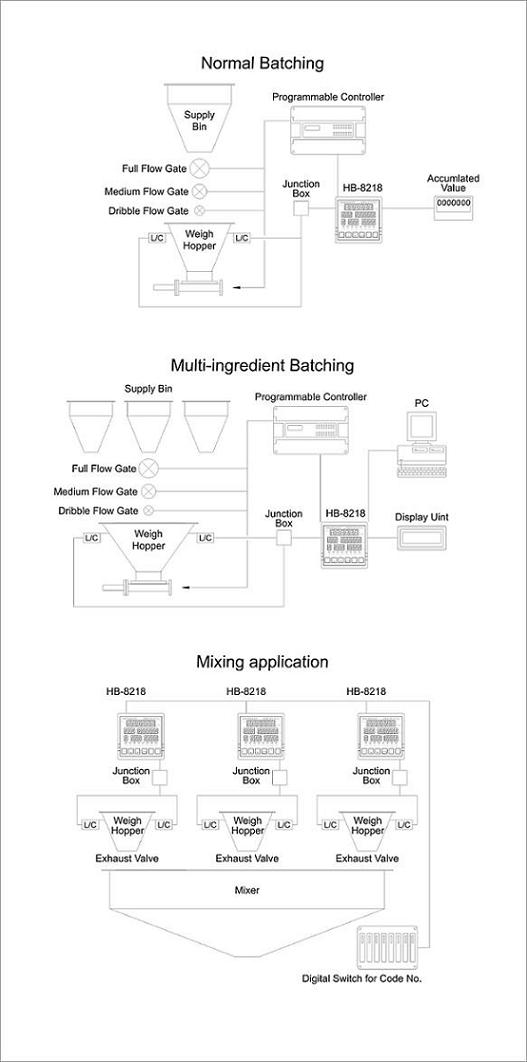

>> Application Ref.
