 HB-8211
High Performance / Powerful Functions / Economical Price / Full Auto Calibration
 The HB-8211 is designed for high accuracy, high speed weighing systems, which simple operation in common weighing application such as using in bench, platform, floor, truck scales which interface with P.C, P.L.C or independent application. A lot of options interface are available such as RS-485 interface, 4-20mA/ 0-10VDC analog O/P printer interface, B.C.D O/P interface, I/O interface. It can be matched each different functions and applications. By the way, of course it also can be applied in hopper, silo weighing system or batching plant control system link with P.L.C. The HB-8211's disigned functions, accuracy, performance and reliability is much better than most of the other indicators in these field. But the price is the most competitive, why? Because we used the newest technology to design it.
Standard Features:
- HB-8211 is designed for high speed weighing application.
- HB-8211 is designed for industrial field application.
- Designed interfere with EMI/ RFI.
- High speed A/D conversion rate 128 times/sec.
- High Resolution 16,000,000 internal counts.
- One (1) full duplex RS-232 communication interface is built in standard type.
- Power for driving (8) 350 Ω load cells or (16) 700Ω load cells.
- Easy to use front keyboard for digital configuration and calibration zero and span.
- Easy to interface with P.L.C for batching plant or weighing control system application.
- RS-485 Serial interface (OPTION-03)
- Parallel port printer 6interface(OPTION-04).
- High accuracy D/A converter: 14 bits (1/16,000) resolution, 4-20mA and 0-10VDC analog O/P (OPTION-05).
- I/O interface (OPTION-06)
- BCD O/P Interface (OPTION-07)
Option
- (op-02-8211): RS-232 Serial Interface.
- (op-03-8211): RS-485 Serial Interface.
- (op-04-8211): Parallel Printer Interface.
- (op-05-8211): 4-20mA / 0-10 vdc Analog o/p
- (op-06-8211): I/O Interface
- (op-07-8211): B.C.D O/P Interface
Technical Specification:
| HB-8211 |
| Input and A/D Conversion |
| Input Sensitivity |
0.3μV/D to 100μV/D |
| Zero adj. range |
0mV to 30mV |
| Load cell excitation |
10VDC, 240mA ( Voltage sensing), drive 8 load cell (350Ω) in parallel |
| Input impedance |
10MΩ (min) |
| A/D Conversion Method |
△ Σ |
| A/D Resolution |
24 bits (16,000,000) counts |
| Temp. coefficient |
Zero ±0.2μV/ C RTI,
Span ±15ppm /°C of reading |
| Digital Section |
| Weight display |
7 Segment LED Display Height
6 digits, 0.52” (13.2mm) |
| Display Resolution |
300~60000 |
| Under zero indication |
Negative " －" sign |
| Over load indication |
Input signal > 30mV "------" |
| Over load indication |
Input signal > 30mV "------" |
| Annumciatores LED lamps |
3mm Red LEDs
Zero, Tare, Gross, Net, Stab Func |
| Switches |
6 Input Keys
Zero, Tare, Tare Reset, Gross/Net, Func, Print
0~9 numerical Keys |
| Digital Set-up Parameters |
- Motion Detection
- Zero Tracking
- Decimal Point
- Count By
- Max. Capacities
- Digital Filter
- Zero Range
- Conversion
- Rate
- Unit
|
| Calibration |
Zero & span full digital calibration. |
| Non-linearity |
±0.01% of full scale |
| General |
| Real Panel |
Load cell input, RS-232/RS-485X1, RS-232X1,
AC-input, Power Switch, Cal. Sw., Printer Port
4-20mA/ 0-10 A/O |
| Power Source |
110 or 220VAC±10%, 50~60Hz(preset in factory) |
| Op. Temperature |
10°C ~ +40°C (+14°F ~ + 104°F) |
| Max. Op. Humidity |
85% Relative Humidity or less (Non-condensing) |
| Dimensions |
192 (W) x 228(D) x 84(H) mm |
| Weight |
Approximately 1.8kg |

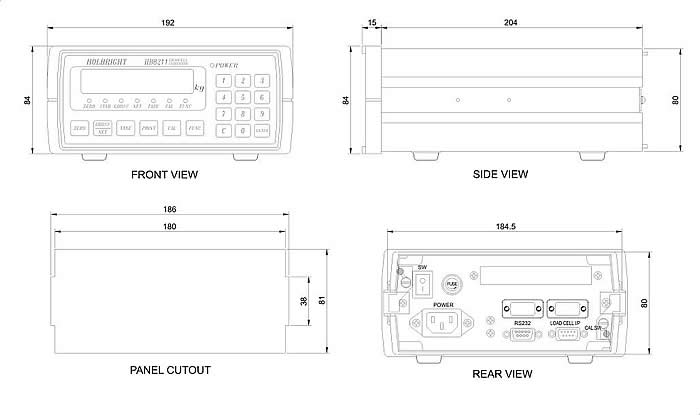

Physical Dimensions Outline:
|
