 HB-DCP Compression Type Digital Loadcell
 The HB-DCP is designed for road, rail weighbridges, and Silo, Tank Scale's application; its Capacity is from 0.5t~300t, the Accuracy can completely meet OIML R60, C3 Grade.
Each Digital Load Cell can be composed independently in any type, quantities' Weighing System and offer Without Test Weight Calibration, Automatic Corner Correction, Automatic Full Span Linear Adjustment, the Automatic Detection of L/C's breakdown or wrong signal. After the replacement of Load Cell, the user only needs to enter the parameter instead of spending time in recalibrating.
The HB-DCP can be connected with HB-8260 Digital Weighing Indicator by easier and faster installation.
The HB-DCP is a Digital Compression Pressure Load Cell with a digital output. The welded Construction and built-in Surge Protection ensure that this product can be used successfully in harsh environment.
Special Features
- Capacity: 0.5t~300t
- High Accuracy can meet OIML C3 Grade
- Digital Output Via Can_bus
- Hermetically sealed, IP68
- Internal Self-Diagnostics
- Self-aligning, Stainless Steel Single Column
- It is provided with Dual Surge Protection (Lighting Protection)
- Calibration without Test Weight
- Auto compensated temperature
Specifications
| Accuracy Class According to OIML R60 |
OIML R60 |
C3 |
Capacities |
t |
0.5,1,2,3,5,10
20,25,30,40,50 |
| n max |
n max |
3000 |
Rated Output |
Counts |
800,000/2mV/V
1,200,000/3mV/V |
| Vmin |
Vmin |
Emax/7500 |
Measuring Rate |
Hz |
256 |
| Combined Error |
%F.S |
≦± 0.020 |
Output Rate |
Hz |
64 |
| Creep Error |
%F.S/30min |
≦± 0.016 |
Asynchronies Interface |
|
CAN Bus |
| Temperature Effect On Sensitivity |
%F.S/10℃ |
≦± 0.011 |
Communication Baud Rate |
Bps |
50K, 125K, 250K |
| Temperature Effect On Zero Output |
%F.S/10℃ |
≦± 0.019 |
Maximum Communication Distance |
m |
50K/750m,125K/250m
250K/100m |
| Compensation Temperature Range |
℃ |
-10~+40 |
Protection Class |
|
IP68 |
| Operating Temperature Range |
℃ |
-30~+80 |
Safe Load Limit |
%F.S |
150 |
| Ultimate Load |
%F.S |
300 |
Length of Cable |
m |
15/10~50t
5/0.5~5t |
Mounting Assembly Kits
 HB-MT 101/101SS
Capacity Model No.
0.5t~50t HB-MT 101-0.5t~50t (Alloyed Steel)
0.5t~50t HB-MT 101SS-0.5t~50t (Stainless Steel)
Feature
- With horizontal limit control ability
- With Auto-Return ability
- Tight construction and easy installation
- Avoid turnover condition
Specifications
| Max.Overload |
150%FS |
| With Anti-Reversal Ability |
50KN |
| With Anti-Side loadl Ability |
50KN |
| Max. Horizontal movement |
5.4mm |
HB-MT 102/102SS
 Capacity Model
0.5t~5t HB-MT 102-0.5t~5t
HB-MT 102SS-0.5t~5t
10t~30t HB-MT 102-10t~30t
HB-MT 102SS-10t~30t
40t~50t HB-MT 102-40t~50t
HB--MT 102SS-40t~50t
Feature
- With Auto-Return ability
- Tight construction and easy installation
Specifications

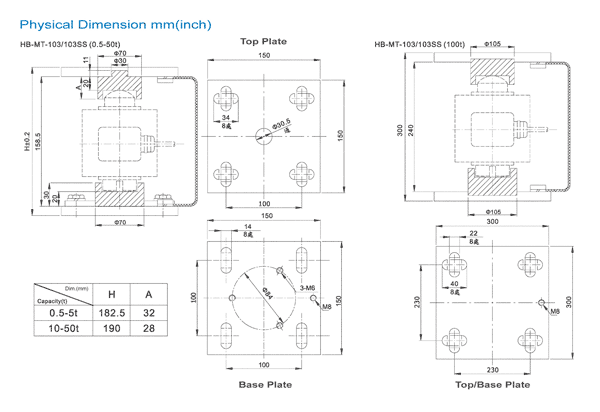

HB-MT 103/103SS
Capacity Model
0.5t~50t HB-MT 103-0.5t~50t (Alloyed Steel)
0.5t~50t HB-MT 103SS-0.5t~50t (Stainless Steel)
Feature
- With Auto-Return ability
- Tight construction and easy installation
Specifications
| Max.Overload |
15%FS |
| Max.Horizontal movement |
5.4mm |
HB-DSB Series Single Shear Beam Digital Load Cell
 Feature
- Capacity:0.5t~25t
- High Accuracy can meet OIML C1,C3 Grade
- Digital Output Via Can-Bus
- Hermetically sealed, IP68
- Internal Self-Diagnostics
- Self-aligning, Stainless Steel Single Column
- It is provided with Dual Surge Protection (Lighting Protection)
- Clibration Without Test Weight
- Auto compensated temperature
|
